Sub-D ISO KF / LF Feedthroughs, Flanges

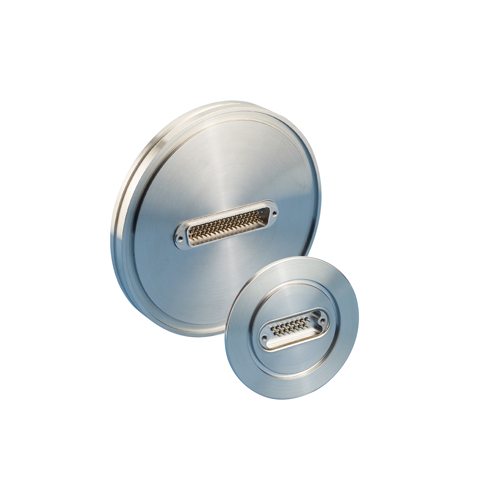

Subminiature-D (Sub-D) Feedthrough, ISO (KF/LF) Flanges.

Subminiature-D multi-pin hermetic vacuum feedthroughs are designed for applications where space is limited inside your vacuum chamber and where many feedthrough penetrations are required.

The compact and unique 9, 15, 25, and 50-pin feedthrough design allows installation into many ISO (KF,LF) Feedthroughs / Flanges sizes and styles. Gold-plated pins are arranged in a straight through pin-to-pin design and are hermetically sealed and electrically insulated in a stainless steel shell using the latest in glass-ceramic bonding technology.

Sub-D Feedthroughs / Flanges features:

• 9 to 100-pin interface available off-the-shelf
• Call for custom feedthrough configurations
• High temperature rated to 150°C (based on O-ring type)
• HV compatible construction
• ISO KF compatible mounts
• Voltage rating: 500 VDC max.
• 5 AMPs per pin (20% of pins at any given time)
• Pins: Au plated, Ni-Fe alloy
• UHV rated 1x10^-8 Torr

All feedthroughs listed on this page are mounted on ISO KF / LF Flanges that incorporate the industry standard "Hinged Clamp" sealing principle, making it easy to mount to your existing ISO KF Flange ports.

Please select a Subminiature-D feedthrough flange from the list below for more details about that item.
