Subminiature Power-D ISO Feedthrough Flanges

Power-D™ ISO NW Feedthroughs

These Power-D ISO feedthroughs are mounted on ISO KF or LF Flanges that incorporate the industry standard "centering-ring O-ring" sealing principle, making it easy to mount to your existing KF/LF Flange ports. Accu-Glass Power-D™ — hermetic, high-current power feedthroughs, are designed to IEC 807-2 and DESC 85039 combination Subminiature-D interface specifications.

Three (3) and five (5) pin feedthroughs, with Au, plated Ni-Fe alloy pins, rated to 20 Amps per pin, are hermetically sealed and insulated into 304 stainless steel Subminiature-D shells using the latest in glass-ceramic / metal bonding technology. Mating cable assemblies with PEEK polymer connectors and Kapton® insulated leads are also available to meet the rigorous demands of UHV environments.

Vacuum and air-side cable assemblies, individual connectors, contacts, wiring tools, and other accessories can be found starting on page 40. Custom Power-D™ solutions are also available on request. Please contact the factory for more information.

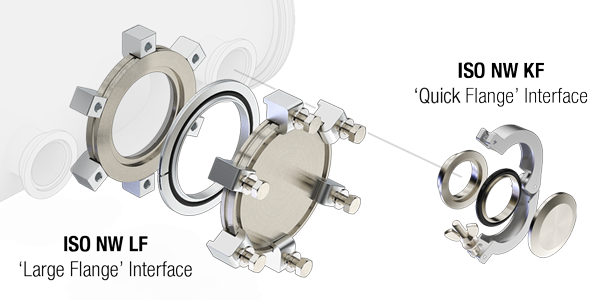

ISO NW Flange Interface

Features

  • Power-D™ High Current Feedthroughs
  • Subminiature-D 3 and 5 Pin Interface
  • High temperature rated to 150°C
  • HV compatible construction
  • ISO NW compatible mounts
  • Kapton® insulated vacuum cables
  • PEEK connector with locking screws
  • Air and Vacuum service cables / Connectors
  • Custom solutions on request

Specifications

Electrical
Voltage 1, Maximum500 VDC
Current, Maximum20 A
Material
Shell, Stainless Steel304
Pins, Au platedNi-Fe
Seal / InsulatorGlass-Ceramic
Connector, AirDelrin®
Connector, UHV 2PEEK
Vacuum Range
UHV, Ultrahigh vacuum1x10E-10 Torr
HV, High vacuum1x10E-8 Torr
Temperature Range 3
Feedthrough250°C
Flange, Conflat®450°C
Flange, ISO150°C
Connector / Cable, Air80°C
Connector / Cable, UHV PEEK250°C
Thermal Gradient, Maximum25°C/minute
Notes
  1. Electrical ratings are maximum test values, with vacuum side at ≤ 1x10-4 Torr. Feedthroughs are designed for high power applications.
  2. PEEK is a polyether ether ketone thermoplastic.
  3. Overall assembly ratings must be adjusted to that of its lowest rated component.
  4. Unless designated a 'kit,' connectors and cable assemblies are not included with feedthrough and must be purchased separately.
