100 Single Fiber UV / VIS, 1.33" CF Flange
Part Number: 112424
Fiber Optic Feedthrough (100 micron UV/VIS), mounted on a 133" CF Flange.Male SMA 905 connectors on each end.
$840.00
This is a test of the "site alert message system". (edited)
Step-Index, UV/VIS Fiber Optic CF Feedthrough Flanges
100 Single Fiber, 2.75 CF, UV/VIS
Part Number: 112425
Fiber Optic Feedthrough (100 micron UV/VIS), mounted on a 275" CF Flange. Male SMA 905 connectors on each end.
$857.00
100 Dual Fiber, 2.75 CF, UV/VIS
Part Number: 112426
2ea. Fibre Optic Feedthrough (100 micron UV/VIS), mounted on a 275" CF Flange. Male SMA 905 connectors on each end.
$1,518.00
200 Single Fiber, 1.33 CF, UV/VIS
Part Number: 105000
Fiber Optic Feedthrough (200 micron UV/VIS), mounted on a 133" CF Flange.Male SMA 905 connectors on each end.
$575.00
200 Single Fiber, 2.75 CF, UV/VIS
Part Number: 105001
Fiber Optic Feedthrough (200 micron UV/VIS), mounted on a 275" CF Flange. Male SMA 905 connectors on each end.
$598.00
200 Dual Fiber, 2.75 CF, UV/VIS
Part Number: 112300
2ea. Fibre Optic Feedthrough (200 micron UV/VIS), mounted on a 275" CF Flange. Male SMA 905 connectors on each end.
$1,047.00
200 Seven Fiber, 2.75 CF, UV/VIS
Part Number: 112815
7ea. Fiber Optic feedthroughs sealed in a single body (200 micron UV/VIS), mounted on a 275" CF Flange.
$3,393.00
400 Single Fiber, 1.33 CF, UV/VIS
Part Number: 105100
Fiber Optic Feedthrough (400 micron UV/VIS), mounted on a 133" CF Flange.Male SMA 905 connectors on each end.
$587.00
400 Single Fiber, 2.75 CF, UV/VIS
Part Number: 105101
Fiber Optic Feedthrough (400 micron UV/VIS), mounted on a 275" CF Flange. Male SMA 905 connectors on each end.
$604.00
400 Dual Fiber, 2.75 CF, UV/VIS
Part Number: 112301
2ea. Fibre Optic Feedthrough (400 micron UV/VIS), mounted on a 275" CF Flange. Male SMA 905 connectors on each end.
$1,052.00
400 Seven Fiber, 2.75 CF, UV/VIS
Part Number: 112816
7ea. Fiber Optic feedthroughs sealed in a single body (400 micron UV/VIS), mounted on a 275" CF Flange.
$3,278.00
600 Single Fiber, 1.33 CF, UV/VIS
Part Number: 105200
Fiber Optic Feedthrough (600 micron UV/VIS), mounted on a 133" CF Flange.Male SMA 905 connectors on each end.
$592.00
600 Single Fiber, 2.75 CF, UV/VIS
Part Number: 105201
Fiber Optic Feedthrough (600 micron UV/VIS), mounted on a 275" CF Flange. Male SMA 905 connectors on each end.
$615.00
600 Dual Fiber, 2.75 CF, UV/VIS
Part Number: 112302
2ea. Fibre Optic Feedthrough (600 micron UV/VIS), mounted on a 275" CF Flange. Male SMA 905 connectors on each end.
$1,058.00
600 Seven Fiber, 2.75 CF, UV/VIS
Part Number: 112817
7ea. Fiber Optic feedthroughs sealed in a single body (600 micron UV/VIS), mounted on a 275" CF Flange.
$3,163.00
1000 Single Fiber, 1.33 CF, UV/VIS
Part Number: 105300
Fiber Optic Feedthrough (1000 micron UV/VIS), mounted on a 133" CF Flange.Male SMA 905 connectors on each end.
$667.00
1000 Single Fiber, 2.75 CF, UV/VIS
Part Number: 105301
Fiber Optic Feedthrough (1000 micron UV/VIS), mounted on a 275" CF Flange. Male SMA 905 connectors on each end.
$673.00
1000 Dual Fiber, 2.75 CF, UV/VIS
Part Number: 112303
2ea. Fibre Optic Feedthrough (1000 micron UV/VIS), mounted on a 275" CF Flange. Male SMA 905 connectors on each end.
$1,162.00
1000 Seven Fiber, 2.75 CF, UV/VIS
Part Number: 112818
7ea. Fiber Optic feedthroughs sealed in a single body (1000 micron UV/VIS), mounted on a 275" CF Flange.
$3,048.00
SMA to SMA 905 Vacuum Service Fiber Optic Coupler
Part Number: 105450
Vented Fiber Optic Cable coupler used to mate two SMA 905 Fiber Optic cables. Vacuum Service, with vent hole.
$38.00

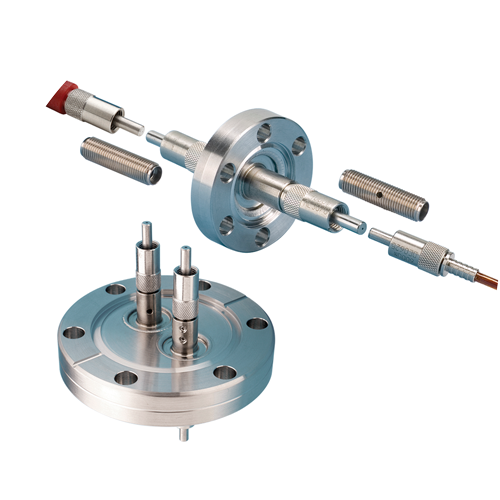

UV/VIS Fiber Optic CF Feedthroughs
Fiber Optic Feedthroughs
Accu-Glass offers fiber optic UV/VIS CF feedthroughs with 62.5, 100, 200, 400, 600, and 1000 micron core diameters. These feedthroughs are ideally suited for industrial and/or scientific research applications requiring air-to-vacuum fiber optic transitions/connections. Multimode fibers (both Step and Graded Index types) are hermetically sealed into a stainless steel shell, using the latest in glass-ceramic-metal bonding technology. Standard fiber optic feedthroughs are terminated with premium SMA 905 connectors on both the vacuum and air sides. FC and ST connections are also available.
Polyimide buffered optical fiber cable assemblies are offered to meet the rigorous demands of ultrahigh vacuum environments. These optical fibers are of a core-and-cladding composite construction. The core, or the filament that guides the light, consists of a thin strand of high-transmission fused silica. The cladding is an outer layer of doped, lower refractive-index fused silica. This dual-layer design tightly confines light to the fiber's central core, thus delivering the maximum amount of light possible at the fiber's destination. Fiber diameters are closely controlled during the drawing process, allowing fibers to center well in connectors and boast low loss rates.
Graded-index multimode fiber bridges the gap between single-mode and step-index multimode fibers, giving up some bandwidth for ease of termination and light launch. It's more economical than single-mode fiber and primarily used for data communication (not as useful for power transmission) applications requiring medium run distances (2 to 15 km lengths).
Features
- UHV compatible construction
- 100, 200, 400, 600, and 1000μm UV, VIS and NIR Step Index fibers
- 62.5μm Graded Index fiber
- SMA 905 premium connector interface
- High temperature rated to 250°C
- Conflat® and ISO KF compatible mounts
- Polyimide buffered vacuum rated optical cables
