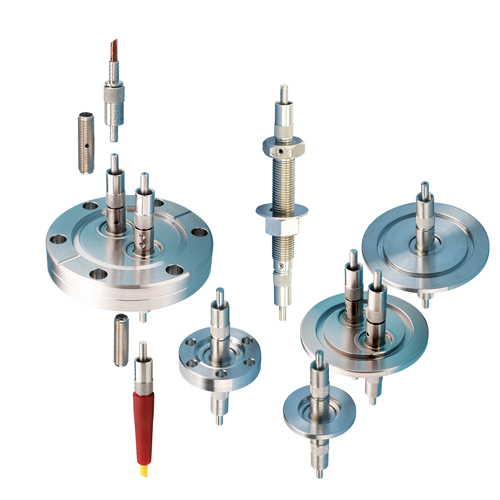

Step-Index, UV/VIS Fiber Optic Feedthroughs and Accessories

Fiber optic UV/VIS feedthrough on a CF flange Show CF Feedthrough for Fiber optic UV/VIS feedthrough on a CF flange
CF Feedthrough
Fiber optic UV/VIS feedthrough on an ISO flange Show ISO KF / LF Feedthroughs for Fiber optic UV/VIS feedthrough on an ISO flange
ISO KF / LF Feedthroughs
UV/VIS bulkhead feedthrough Show Bulkhead Feedthroughs for UV/VIS bulkhead feedthrough
Bulkhead Feedthroughs
A pair of UV/VIS fiber optic cables Show UHV Cables for A pair of UV/VIS fiber optic cables
UHV Cables
A pair of SMA 905 fiber optic couplers Show Accessories / Components for A pair of SMA 905 fiber optic couplers
Accessories / Components
A pair of UV/VIS air cables Show Air Cables for A pair of UV/VIS air cables
Air Cables
placeholder image

UV / VIS Feedthroughs

UV / VIS or High-OH Fiber, 200-800nm

The typical assembly shown below (requires couplers):

Fiber Optic - Step-Index UV / VIS Feedthroughs

Fiber Optic feedthroughs are constructed with 100, 200, 400, 600, and 1000 micron UV/VIS multimode fibers.  Our UV/VIS feedthroughs are designed for vacuum applications requiring Fiber Optic connections from inside a vacuum system to external equipment.  The fiber is hermetically sealed into a stainless steel shell, using the latest in glass bonding technology, and terminated on the vacuum and airside with SMA 905 Premium Connectors.
