Light Guide, 1x 1.33 CF Flange
Part Number: 115020
1x-Path 0.13-Inch (3.2mm) double-ended Light Guide feedthrough mounted on a 1.33 CF flange
$620.00
This is a test of the "site alert message system". (edited)
Light Guide CF Viewport Flanges
Light Guide, 1x 2.75 CF Flange
Part Number: 115021
1x-Path 0.13-Inch (3.2mm) double-ended Light Guide feedthrough mounted on a 2.75 CF flange
$630.00
Light Guide, 2x 2.75 CF Flange
Part Number: 115025
2x-Path 0.13-Inch (3.2mm) double-ended Light Guide feedthrough mounted on a 2.75 CF flange
$1,180.00
Light Guide, 2x 3.38 CF Flange
Part Number: 115026
2x-Path 0.13-Inch (3.2mm) double-ended Light Guide feedthrough mounted on a 3.38 CF flange
$1,190.00
Light Guide, 3x 3.38 CF Flange
Part Number: 115030
3x-Path 0.13-Inch (3.2mm) double-ended Light Guide feedthrough mounted on a 3.38 CF flange
$1,810.00
Light Guide, 4x 3.38 CF Flange
Part Number: 115033
4x-Path 0.13-Inch (3.2mm) double-ended Light Guide feedthrough mounted on a 3.38 CF flange
$2,310.00
Light Guide, 2x 4.50 CF Flange
Part Number: 115027
2x-Path 0.13-Inch (3.2mm) double-ended Light Guide feedthrough mounted on a 4.50 CF flange
$1,200.00
Light Guide, 3x 4.50 CF Flange
Part Number: 115031
3x-Path 0.13-Inch (3.2mm) double-ended Light Guide feedthrough mounted on a 4.50 CF flange
$1,910.00
Light Guide, 4x 4.50 CF Flange
Part Number: 115034
4x-Path 0.13-Inch (3.2mm) double-ended Light Guide feedthrough mounted on a 4.50 CF flange
$2,340.00
Light Guides

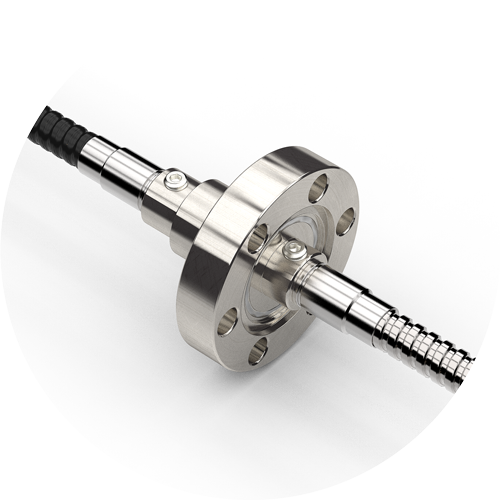

AGP CF Light Guide feedthroughs provide a simple and convenient means of introducing high intensity illumination into high and ultrahigh vacuum systems. Feedthroughs are offered in 1, 2, 3, or 4 light-path configurations on Conflat compatible CF, and ISO-NW KF flanges. AGP Light Guide feedthroughs are designed for use with standard flexible PVC and Stainless Steel bundled-fiber cables fitted with 3/16-Inch diameter (1/2-Inch long) barrel connectors. Each feedthrough path includes a hermetically sealed optical-grade sapphire substrate window for maximum vacuum integrity and optimal light transmission. Air and vacuum-side feedthrough interfaces include set-screws to securely lock cable connectors in place. Light sources and light guide cables are not offered by AGP, but can be procured from various optical suppliers, including Tri-Tronics, and others.
