SHV-5 - Single Ended, Floating Shield Feedthrough on a NW40 KF Flange
Part Number: 112443

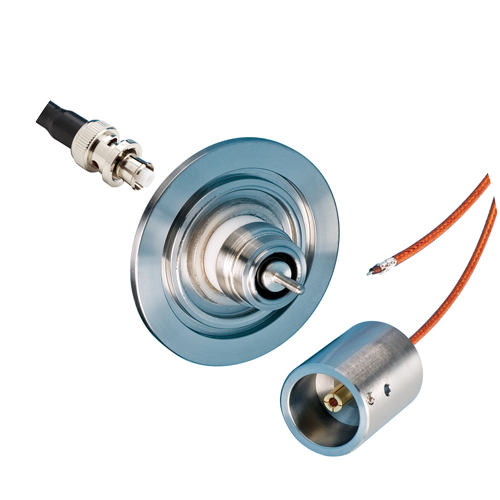

SHV-5 Single-ended, Floating-shield feedthrough mounted on a NW40 KF flange.
$225.00
This is a test of the "site alert message system". (edited)
Floating Shield SHV-5 ISO Feedthroughs
SHV-5 Floating Shield Feedthrough on ISO Flanges
SHV-5 Coaxial Interface

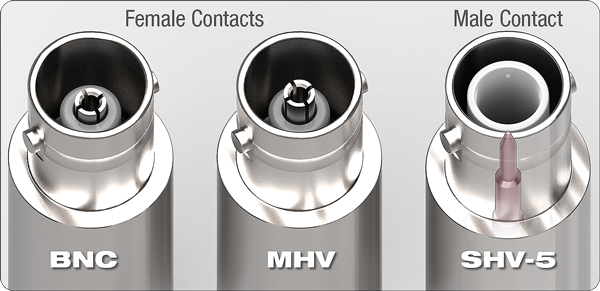

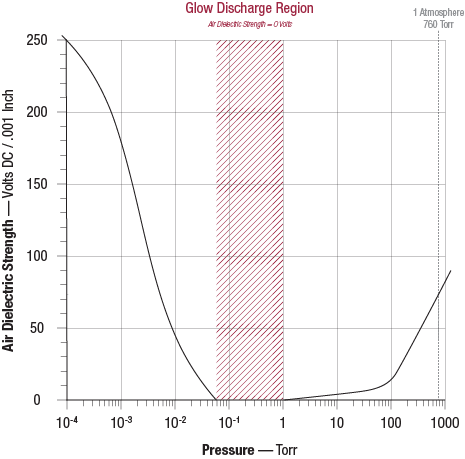

The 'Safe High Voltage' connector interface is designed for low noise 50-ohm lines requiring higher voltage than is possible with a standard BNC interface. SHV-5 coaxial feedthroughs are constructed in both grounded and floating shield configurations. Floating shield types provide two concentric conductor paths: an outer metal conductor tube (shield) concentric with, and enclosing, a cylindrical center conductor pin. Both paths are electrically isolated from each other and a mounting flange. Grounded shield SHVs provide only one path that's electrically isolated from the flange; where grounded shield and flange are electrically common. Vacuum side of single-ended grounded and floating SHV feedthroughs have a 0.094 inch (2.4-mm) diameter conductor pin that mates with grounded or floating AccuFast™ connectors.
Features
- SHV-5 Coaxial Interface
- Grounded and Floating Shield
- Single and Double Ended configurations
- Kapton® insulated 50-Ohm cable
- High temperature rated to 250°C
- UHV compatible construction
- Conflat® and ISO KF compatible mounts
- Air service cables/connectors
- Custom solutions on request
