Grounded Shield MHV CF Feedthroughs

placeholder image

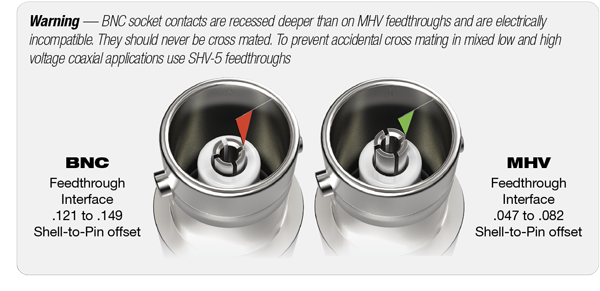

MHV - Grounded Shield Feedthroughs on CF Flangesmating warning diagram on differences between BNC and MHV feedthroughs

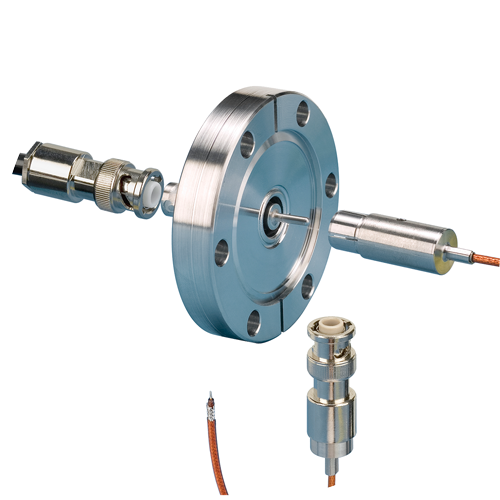

MHV, Grounded Shield Feedthrough on CF Flanges

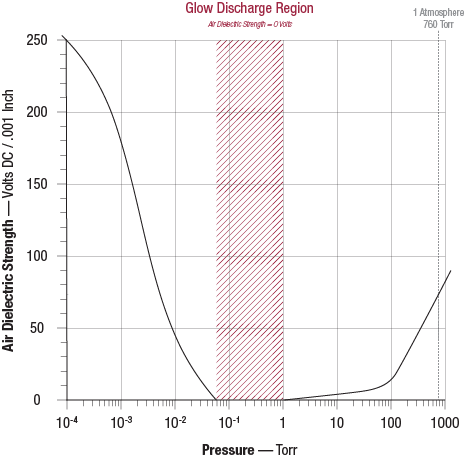

The 'Miniature High Voltage' connector interface is designed for low noise 50-ohm lines requiring higher voltage than is possible with a standard BNC interface. MHV coaxial feedthroughs are constructed in both grounded and floating shield configurations. Floating shield types provide two concentric conductor paths: an outer metal conductor tube (shield) concentric with, and enclosing, a cylindrical center conductor pin. Both paths are electrically isolated from each other and a mounting flange. Grounded shield MHVs provide only one path that's electrically isolated from the flange; where grounded shield and flange are electrically common. Vacuum side of single-ended grounded and floating MHV feedthroughs have a 0.094 inch (2.4-mm) diameter conductor pin that mates with grounded or floating AccuFast™ connectors.

Features

  • MHV Coaxial interface
  • Grounded and Floating Shield
  • Single and Double Ended configurations
  • Kapton® insulated 50-Ohm cable
  • High temperature rated to 250°C
  • UHV compatible construction
  • Conflat® and ISO KF compatible mounts
  • Air service cables/connectors
  • Custom solutions on request
